Reduced Bore and Full Bore


We are looking for Dealers / Traders

Product Literature

Material Selection Guide

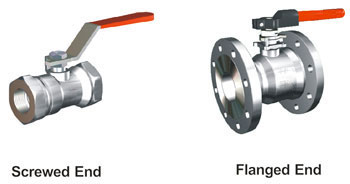

Single Piece Reduced and Full Bore




Sizes in mm(inch) Pressure Rating
Flanged Ends
15 (1/2") to 300 (12") Class 150 & 300
Screwed Ends
Screwed Ends/ Socket Weld Ends Class 800
Screwed Ends/ Socket Weld Ends Class 600


Design Std. BS EN ISO 17292 (BS 5351), API 6D.
Face to Face (For Flanged End Only) ASME B16.10, EN 558-2.
Testing Std. API 598, BS:6755-1, EN 12266-1
Body & Insert Material WCB, CF8, CF8M, CN7M, CS, 304, 316 etc.
Ball Material 410, 304, 316, CA15, CF8, CF8M, CN7M etc.
Stem Material 410, 304, 316, 17-4PH etc.
Seat PTFE / CFT / GFT / DELRIN / NYLON / PEEK / METAL
End Connection Flanged, Screwed, Socket.
End Detail For SE – BS:21 (Parallel/ Taper) / ASME B1.20.1 (NPT) Threads, SWE-B16.11.
