Products
Gate Valve
Forged Gate Valve

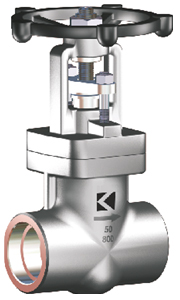

Forged Gate Valve
Sizes in mm(inch)
Pressure Rating
Screwed, Socket & Butt Weld Ends
08 (1/4") to 50 (2")
Class 800 & 1500
15 (1/2") to 25 (1")
Class 2500
Flanged Ends ( Weldon Flanges)
15 (1/2") to 50 (2")
Class 150, 300 & 600
Design Std.
API 602, BS 5232
Face to Face
ASME B16.10
Testing Std.
API 598/EN 1266-1
Body & Bonnet
A105, F11, F22, F5, F9, F304 & F316
wedge
CA15, CF8, CF8M
Stem
410, 304, 316
Seat
410, 304, 316
End Connection
Flanged, Screwed.Socket weld Ends
End Detail
For SE – BS:21 (Parallel/ Taper) / ASME B1.20.1 (NPT) Threads, SWE B16.11
